A guide (+ a tool) to 3D data logger placement in GxP mapping

Most people instinctively think about floor space when planning a mapping study. Length and width come naturally – you are walking the room, estimating corners, thinking about where shelves or pallets sit. Height, though, is where studies often fall short.

Temperature does not distribute evenly across a room. Heat rises. Cold air sinks. HVAC systems create airflow patterns that behave differently at different elevations. A sensor grid that covers the horizontal plane well but ignores vertical variation will simply miss a significant portion of what is happening in your controlled environment.

GxP guidance frameworks, including WHO TRS 961 and ISPE guidelines for temperature mapping, recognize this. They typically call for sensors to be distributed across the full three-dimensional volume of a space, not just at a single height or along the perimeter. The exact approach varies by facility type, regulatory jurisdiction, and the purpose of the space, but the underlying logic is consistent: If temperature matters in three dimensions, your measurement needs to happen in three dimensions.

The practical question is: How many loggers do you need, and where do you put them?

The answer typically follows a grid logic. You define a maximum allowable distance between sensors – both in the horizontal plane and in the vertical direction. Those two parameters then determine how many measurement points you need to cover the space fully.

Think of it this way:

• Horizontal spacing defines how far apart loggers can be along the length and width of the room. If your protocol specifies a maximum horizontal interval of 3 meters, then every point in the horizontal plane must be within 3 meters of a logger.

• Vertical spacing defines the equivalent for height. If your protocol allows a maximum vertical interval of 2 meters, and your room is 5 meters tall, you likely need loggers at multiple height levels to cover the full column from floor to ceiling.

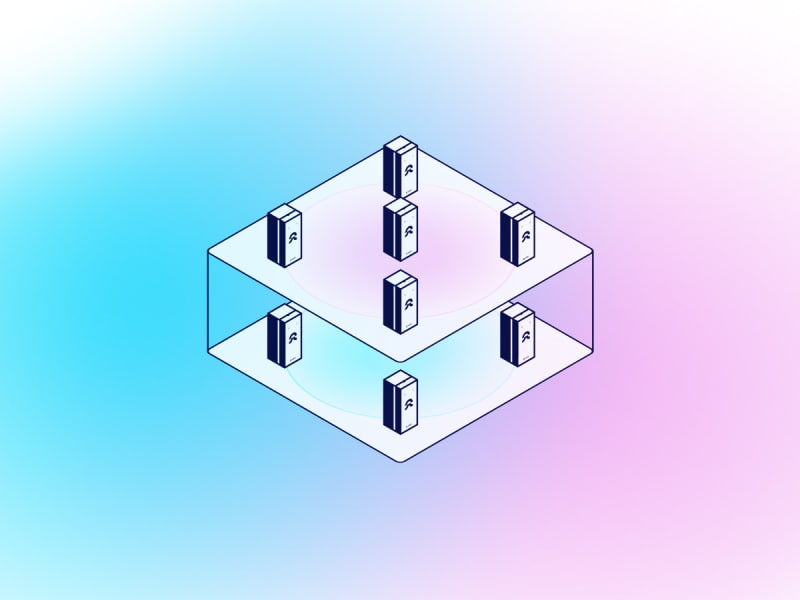

These two parameters – horizontal interval and vertical interval – interact with your room dimensions to determine the total logger count and the three-dimensional grid you need to populate.

The placement is often described as a regular grid, though in practice it gets adapted around physical obstacles, shelving configurations, airflow sources, and access constraints. The grid gives you the baseline; engineering judgment and risk assessment shape the final layout.

The concept is straightforward when described, but it becomes much more intuitive when you can see it. A logger grid that looks simple on paper takes on a different character when you visualize it as a three-dimensional structure inside a real room volume.

That is exactly what the Eupry 3D Temperature Mapping Visualizer is built for. It is an interactive tool that lets you:

• Set your room dimensions – length, width, and height in meters
• Define your placement rules – maximum horizontal interval and maximum vertical interval
• See the resulting logger positions rendered in a 3D model of the space

The tool calculates the number of loggers required and shows you exactly where they fall inside the volume. You can rotate the model, pan, and zoom to understand the structure from any angle.

Try adjusting the vertical interval parameter relative to room height and watch how the number of height levels changes. Try a tall, narrow room versus a low, wide warehouse space. The relationship between room geometry and logger count becomes immediately visible in a way that a spreadsheet or a text description cannot match.

Also read: How to analyze data from your mapping exercises

Understanding the 3D grid concept helps you think more clearly about several practical questions that come up in every mapping project.

• How does room height affect complexity? A room with a 3-meter ceiling behaves very differently from a cold store with an 8-meter ceiling. The taller the space, the more vertical layers you typically need, and the more loggers the study requires.

• Where do placement rules come from? The maximum interval distances in your mapping protocol should come from your risk assessment and, where applicable, the guidance frameworks relevant to your facility and product type. They are not fixed universal values – they reflect the sensitivity of the environment and the regulatory expectations you are working within.

• How do physical constraints interact with the grid? Real rooms have shelving, airflow units, doors, and columns. Your ideal grid gives you a baseline, but your actual placement plan needs to account for what can realistically be accessed and what represents the highest-risk measurement locations.

• How does the grid change with different protocols? Some mapping protocols specify tighter intervals than others. Using the planner, you can quickly compare what a 2-meter horizontal interval versus a 3-meter interval looks like in terms of total logger count and coverage – before you commit to a protocol.
