Lyophilizer validation guide

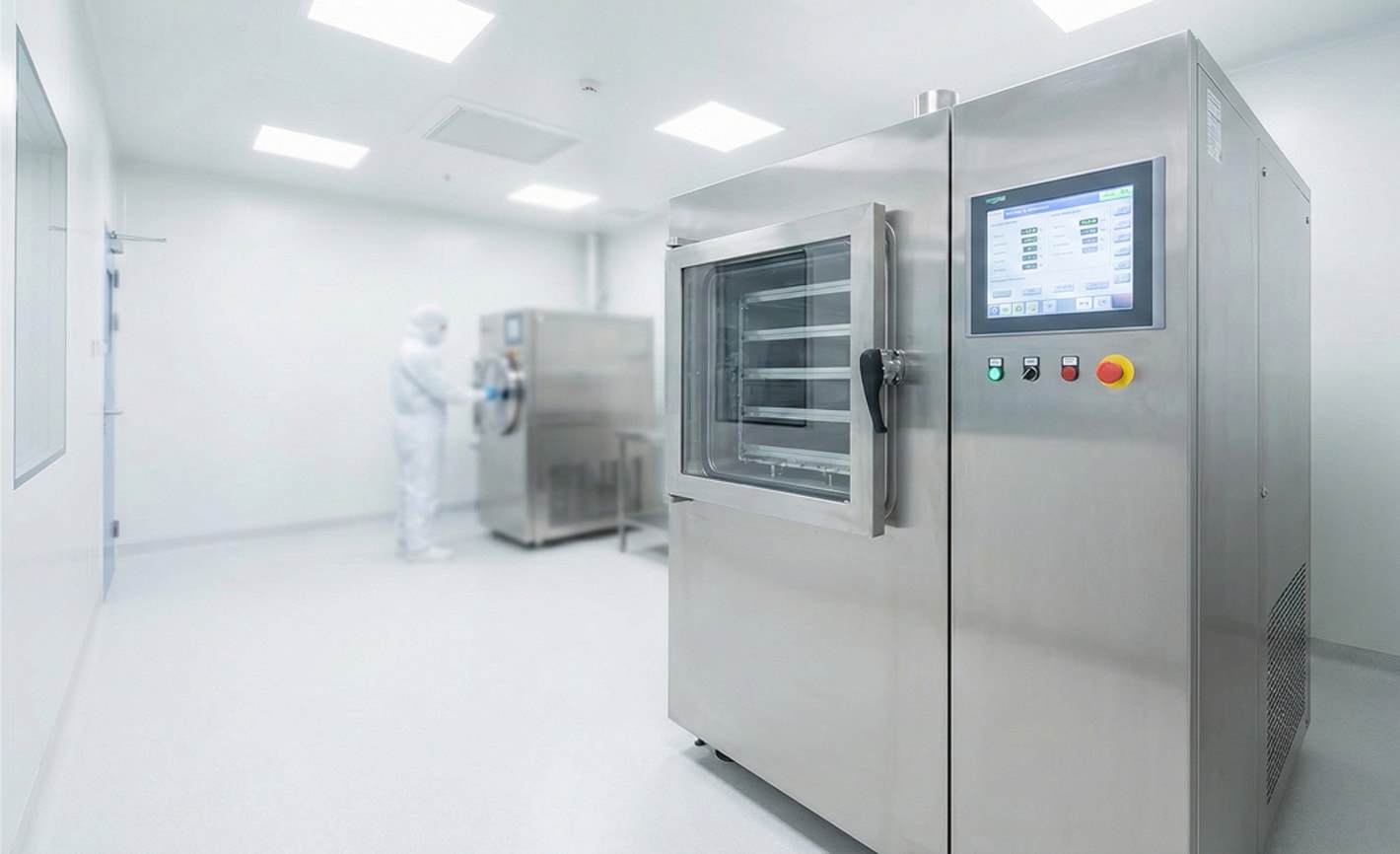

Lyophilizer qualification is required before using freeze-drying equipment in GMP manufacturing and at specific points throughout its operational life.

New equipment installation: Validation is mandatory before introducing a lyophilizer into production. Equipment must be qualified even if purchased from a reputable manufacturer with documentation.

Equipment relocation: Moving a freeze dryer to a new location requires requalification. Installation conditions, utilities, and environmental factors differ between sites and can affect performance.

Major repairs or modifications: Significant component replacement or system changes trigger revalidation requirements. Examples include replacing shelves, upgrading control systems, or modifying chamber configurations.

Periodic requalification: Many organizations conduct scheduled revalidation annually or biannually to confirm ongoing compliance. The frequency depends on equipment criticality, maintenance history, and quality risk assessment.

Process changes: Introducing new products or significantly different lyophilization cycles may require performance requalification to demonstrate suitability for the new application.

Regulatory inspection preparation: Organizations often conduct validation reviews before scheduled inspections to ensure documentation remains current and equipment operates within validated parameters.

Operational qualification demonstrates that the lyophilizer operates correctly across its intended operating ranges under controlled conditions.

Control system verification tests all operational functions. Verify manual control of shelf temperature across the full operating range. Test automatic temperature control and setpoint accuracy at multiple target temperatures. Confirm chamber pressure control across vacuum ranges used in production. Test automatic sequencing if the freeze dryer includes programmed cycles.

Temperature performance testing characterizes how the freeze dryer responds to temperature commands. Measure shelf cooling rates from ambient to minimum operating temperature (typically -40°C to -55°C / -40°F to -67°F). Verify shelf heating rates to the maximum operating temperature. Document temperature overshoot and recovery characteristics when changing setpoints.

Shelf temperature mapping under empty chamber conditions is a critical OQ activity. This establishes baseline temperature distribution before introducing product loads. Temperature uniformity across shelf surfaces directly impacts product quality and batch consistency during actual production.

Vacuum system performance must meet specifications for successful lyophilization. Measure chamber evacuation time to target operating pressure. Verify the ultimate vacuum achievable by the system. Conduct leak rate testing at typical operating pressures to confirm chamber integrity. Test vacuum release and chamber venting systems operate safely.

Condenser performance affects the freeze dryer's capacity to remove water vapor. Verify the condenser reaches the specified minimum temperature (typically -50°C to -80°C / -58°F to -112°F depending on design). Test automatic defrost cycles if applicable. Confirm condenser temperature monitoring and alarms function correctly.

Safety system testing ensures operator protection and equipment safety. Test all alarm functions, including temperature limit violations, pressure deviations, and power failures. Verify emergency stop buttons halt all operations immediately. Confirm door interlocks prevent opening under vacuum. Test automatic shutdown sequences on utility failures.

Clean-in-Place (CIP) and Sterilize-in-Place (SIP) qualification applies to freeze dryers used for sterile products. Verify CIP cycles reach target temperatures and hold times. Test SIP cycles achieve required sterilization values throughout the chamber. Confirm biological indicators demonstrate adequate sterility assurance if required by your validation protocol. Learn more about clean in place CIP and SIP.

Also see: Complete guide to IQ/OQ/PQ

Temperature mapping is essential for lyophilizer qualification because shelf temperature uniformity directly impacts product quality and batch consistency.

Why temperature mapping matters in lyophilization centers on the freeze-drying mechanism. Product temperature during primary drying must remain below the collapse temperature for amorphous products or the eutectic temperature for crystalline formulations. Temperature variations across shelves or within a shelf create product quality differences between vials. Inadequate temperature control causes cake collapse, extended drying times, or batch failures.

When to perform mapping depends on the validation phase. Empty chamber mapping during OQ establishes baseline temperature distribution without product influence. Loaded chamber mapping during PQ reveals the actual temperature distribution under production conditions. Comparing empty and loaded results identifies edge effects and thermal gradients affecting the product.

Sensor requirements ensure reliable temperature data. Use calibrated temperature sensors with appropriate accuracy for pharmaceutical applications (commonly ±0.5°C / ±0.9°F or better, though requirements vary by product criticality). Verify calibration certificates are current and traceable to recognized standards. Select sensors appropriate for the temperature range being mapped (-80°C to +60°C / -112°F to +140°F covers most lyophilization cycles). Confirm sensors are compatible with vacuum environments and can be steam sterilized if required for chamber access.

Sensor placement strategy follows industry best practices. Place sensors at shelf corners and center to capture temperature variation across the surface. Recommended practice includes multiple measurement points per shelf being qualified. Position sensors near fluid inlet and outlet zones where temperature gradients may be larger. Include sensors near chamber doors and walls to detect radiation effects. Document exact sensor coordinates with photographs for future reference.

Mapping phases should cover all critical process conditions. Map during freezing phase (commonly -40°C / -40°F or colder, depending on product). Conduct mapping during primary drying phase (temperature range varies by product, commonly -10°C to +10°C / +14°F to +50°F). Perform mapping during secondary drying phase (commonly +20°C to +40°C / +68°F to +104°F). Industry practice typically recommends holding at each setpoint for 30 minutes or longer after reaching steady state before evaluating uniformity, though the specific duration should be justified in your protocol.

Acceptance criteria for temperature mapping should be defined in your validation protocol based on product requirements and equipment capability. Temperature variation across shelf surfaces is commonly evaluated, with acceptable ranges varying by application. For example, some protocols may specify variation within ±2°C (±3.6°F), while others require tighter control depending on product collapse temperature and process criticality. Establish acceptable temperature differences between shelves. Define how hot and cold spots will be identified and evaluated. Document position-dependent temperature effects and their impact on product quality. Your acceptance criteria must be justified based on your specific product and process needs.

Data analysis and reporting converts raw temperature data into actionable information. Generate temperature distribution profiles for each mapped phase. Identify and document hot and cold spots on each shelf. Calculate temperature ranges and standard deviations. Compare loaded chamber mapping to empty chamber results to understand product thermal effects. Create visual representations (contour maps, graphs) showing temperature distribution.

Also read: GxP temperature mapping equipment and services

Certain issues appear frequently in lyophilizer validations and can cause delays, compliance gaps, or failed qualification attempts.

Inadequate acceptance criteria create ambiguity about whether the qualification succeeded. Avoid vague criteria like "acceptable appearance" or "satisfactory performance." Instead, define specific, measurable limits based on product requirements and equipment capability. For example, specify "shelf temperature variation ≤2°C across all measurement points" rather than "uniform temperature distribution." Ensure acceptance criteria are realistic for the equipment while protective of product quality.

Insufficient temperature mapping coverage fails to adequately characterize thermal distribution. Placing too few sensors or positioning them only at convenient locations misses temperature variation in critical areas. Follow industry recommendations for sensor quantity and placement. Document rationale for sensor locations. Map all shelves that will be used in production, not just easily accessible ones.

Calibration issues frequently cause validation delays. Calibration certificates expiring during validation execution invalidate test results. Sensors calibrated outside the temperature range used during testing do not provide valid data. Missing traceability to national or international standards fails regulatory expectations. Verify all calibration documentation before starting qualification and maintain adequate validity periods throughout execution.

Inconsistent results between validation batches indicate process control issues. Significant batch-to-batch variation suggests the freeze dryer or process parameters are not adequately controlled. Investigate any inconsistencies immediately rather than accepting borderline results. Document root cause analysis and corrective actions. Consider additional qualification batches if consistency cannot be demonstrated.

Documentation deficiencies are among the most common inspection findings. Missing signatures or approval dates on protocols or reports indicate incomplete quality oversight. Illegible handwritten entries or unsigned corrections create data integrity concerns. Incomplete deviation documentation without formal investigation raises compliance questions. Implement robust documentation review procedures before considering validation complete.

Undocumented changes during validation compromise qualification integrity. Equipment modifications, software updates, or maintenance performed during validation without documentation and impact assessment invalidate results. Implement strict change control during qualification periods. Document any necessary changes with justification and re-execute affected tests.

Inadequate initial validation creates costly re-work cycles. Rushing through qualification to meet production deadlines often results in incomplete temperature mapping, insufficient sensor coverage, or poorly defined acceptance criteria. These shortcuts lead to failed batches, regulatory observations, and mandatory re-validation. Investing adequate time and resources in thorough initial qualification prevents expensive re-work and production delays.
